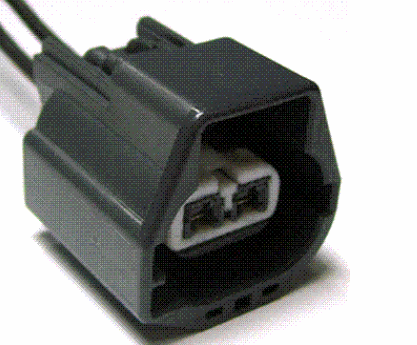

Connector End View (C3145) - POWER SLIDING WINDOW MOTOR, REAR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
DK GY
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW68 (VT-OG) | 12 | CTRL MOD. - WINDOW MOTOR REAR (BACKLIGHT) # DOWN | |
| 2 | CPW67 (BN-VT) | 12 | CTRL MOD. - WINDOW MOTOR REAR (BACKLIGHT) # UP |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1336 |
Service Part Number: DU2Z-14S411-KA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Fuel Filler Door Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear |
| Pigtail Kit Part Number WPT-1496 |
Service Part Number: DU2Z-14S411-KB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Glow Plug Motor - Fuel Filler Door Motor - Power Slider Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
