Connector End View (C3135) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
LT GY
Base Part #
Service Pigtail
See Below
MALE
Harness 14B687
FEMALE
Harness 14B686
| Pin | Circuit | Gauge | Qualifier |
| 1 | CHS54 (WH-GN) | 20 | |
| 2 | VHS45 (GY-BN) | 22 | |
| 3 | RHS41 (GN-BN) | 22 | |
| 4 | GD347 (BK-VT) | 20 |
| Available Pigtail Kits | |

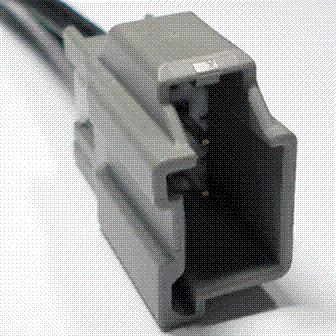

| Pigtail Kit Part Number WPT-1076 |
Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses: Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top |

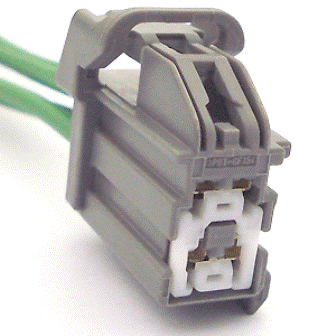

| Pigtail Kit Part Number WPT-977 |
Service Part Number: 3U2Z-14S411-LUB Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses: Element - Heated Seat Lamp - Ambient Lighting Lamp - Courtesy - Footwell Mirror - Sideview Motor - Adjustable Pedal Motor - Steering Column Adjust Solenoid - Brake Shift Park Interlock Speaker - Subwoofer Switch - Gear Shift Select/Neutral Safety Transceiver - Passive Anti-Theft (PATS) |
