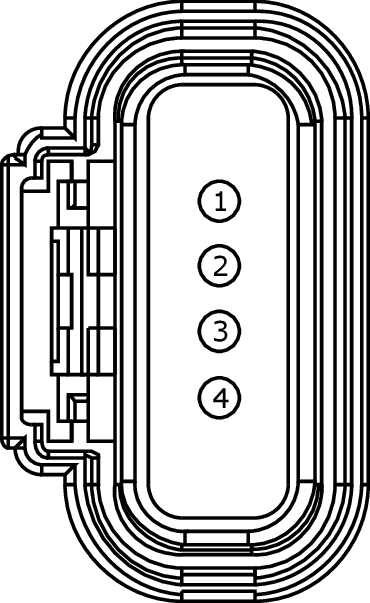

Connector End View (C3127) - FUEL PUMP AND SENDER UNIT
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14405
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RMC32 (GN-BU) | 20 | CTRL MOD. - SENSOR FUEL LEVEL | |
| 2 | VMC11 (YE-VT) | 20 | SENSOR - FUEL LEVEL (FLI) | |
| 3 | RE515 (WH-BN) | 10 | DRIVER - FUEL PUMP MOTOR (FPDM) - | |
| 4 | CE515 (YE-GY) | 10 | DRIVER - FUEL PUMP MOTOR (FPDM) + |
