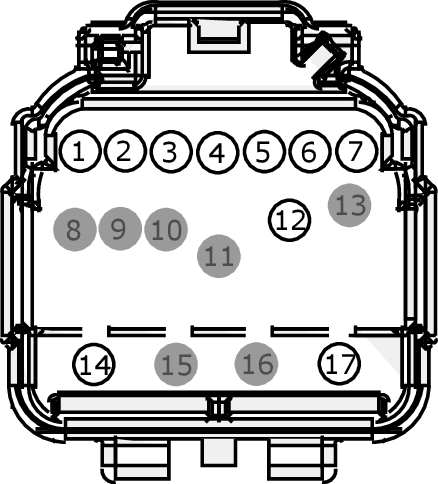

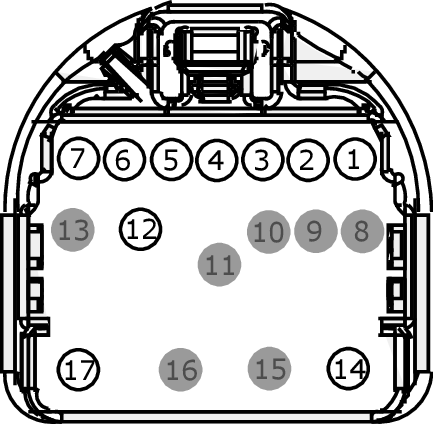

Connector End View (C3049) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
Not Available
MALE
Harness 14B687
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | CBP36 (BU-BN) | 22 | |
| 2 | CHS48 (YE) | 26 | |
| 3 | CHS31 (GY) | 26 | 14A005 |
| 3 | CHS31 (YE-OG) | 22 | 14B687 |
| 4 | CHS80 (BN) | 26 | 14B687 |
| 4 | CHS80 (BU-OG) | 22 | 14A005 |
| 5 | CHS53 (WH) | 26 | 14B687 |
| 5 | CHS53 (WH-BN) | 22 | 14A005 |
| 6 | CHS52 (BU) | 26 | |
| 7 | CHS49 (VT) | 22 | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * | |
| 12 | GD347 (BK-VT) | 22 | |
| 13 | * | * | |
| 14 | SBB83 (BU-RD) | 16 | 14A005 |
| 14 | SBB83 (BU-RD) | 20 | 14B687 |
| 15 | * | * | |
| 16 | * | * | |
| 17 | GD347 (BK-VT) | 20 |
