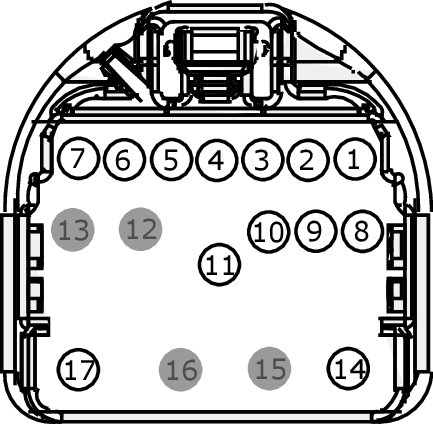

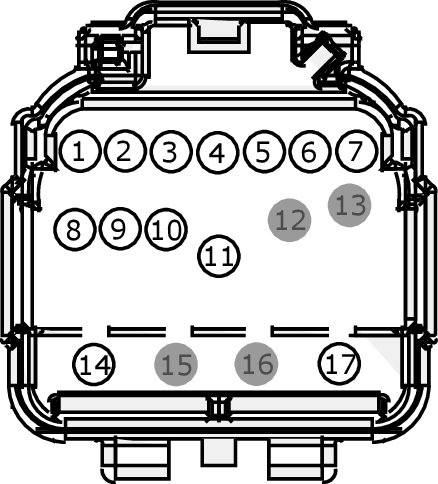

Connector End View (C3048) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A005
FEMALE
Harness 14633
| Pin | Circuit | Gauge | Qualifier |
| 1 | RR120 (BN-GN) | 20 | |
| 2 | CR120 (BU-OG) | 20 | |
| 3 | CPW14 (VT-WH) | 22 | |
| 4 | CPW16 (BU) | 26 | 14A005 |
| 4 | CPW16 (BU-OG) | 22 | 14633 |
| 5 | CPW15 (YE) | 22 | 14633 |
| 5 | CPW15 (YE) | 26 | 14A005 |
| 6 | VME09 (WH-GN) | 18 | 14A005 - without Sony |
| 6 | VME09 (WH-GN) | 20 | 14633 |
| 6 | VME09 (WH-GN) | 20 | 14A005 - with Sony |
| 7 | RME09 (BN-YE) | 18 | 14A005 - without Sony |
| 7 | RME09 (BN-YE) | 20 | 14633 |
| 7 | RME09 (BN-YE) | 20 | 14A005 - with Sony |
| 8 | CR188 (VT-GN) | 20 | |
| 9 | RR188 (WH-VT) | 20 | |
| 10 | CPL36 (GN) | 22 | 14633 |
| 10 | CPL36 (GN) | 26 | 14A005 |
| 11 | GD347 (BK-VT) | 22 | |
| 12 | * | * | |
| 13 | * | * | |
| 14 | CBP38 (GY-BU) | 14 | |
| 15 | * | * | |
| 16 | * | * | |
| 17 | GD347 (BK-GY) | 14 | 14A005 |
| 17 | GD347 (BK-VT) | 14 | 14633 |
