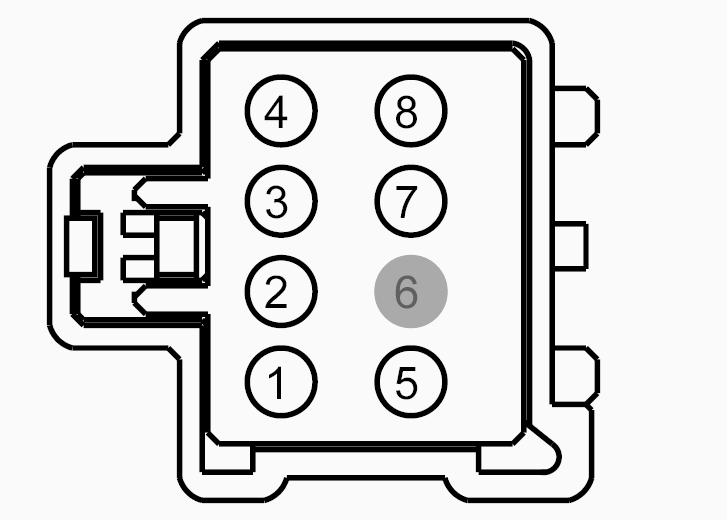

Connector End View (C3040) - SEAT CUSHION BLOWER MOTOR, PASSENGER SIDE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
LT GY
Harness
14D230
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS07 (GY-BU) | 14 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER + | |
| 2 | RHS07 (BU) | 14 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER - | |
| 3 | CHS08 (BN-YE) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN + | |
| 4 | RHS08 (VT-WH) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN - | |
| 5 | VHS27 (WH-OG) | 20 | SENSOR - CUSHION TEMP. PASSENGER | |
| 6 | * | * | Not Used | |
| 7 | VHS23 (BN-BU) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL | |
| 8 | RHS10 (BU-OG) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1034 |
Service Part Number: 3U2Z-14S411-ZTB Gauge: 14 Pin material: Tin Cavities: 8 Vehicle Uses Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) |
