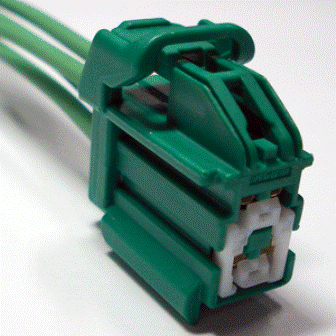

Connector End View (C3020) - SUBWOOFER

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME01 (GN-VT)	20	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 +
2	RME01 (GY)	20	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 -
3	VME02 (VT)	20	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 +
4	RME02 (YE)	20	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1016

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FFB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Motor - Steering Column Adjust

Speaker - Subwoofer

Transceiver - Passive Anti-Theft (PATS)
