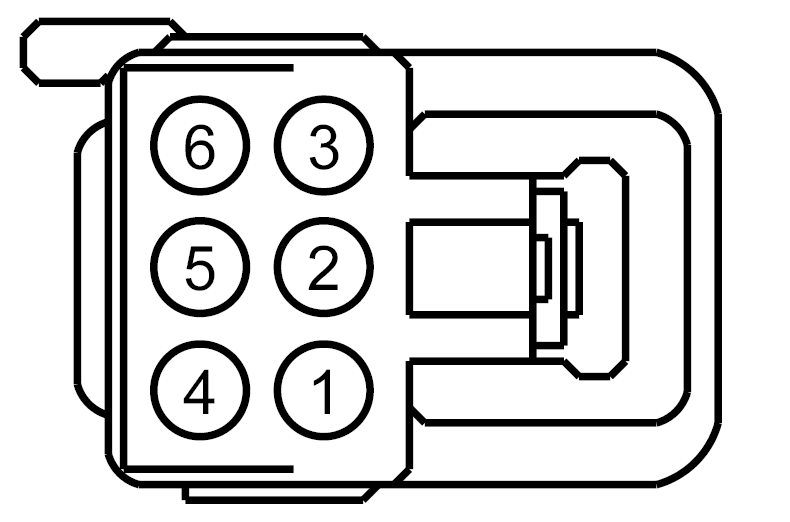

Connector End View (C2506B) - SPOT LAMP MODULE (SLM)
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GN
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBB90 (YE-RD) | 16 | FUSE - 90 OR CIRCUIT BREAKER | |
| 1 | SBB90 (YE-RD) | 22 | FUSE - 90 OR CIRCUIT BREAKER | |
| 2 | CLF76 (GY-OG) | 22 | #N/A | |
| 3 | SBB90 (YE-RD) | 22 | FUSE - 90 OR CIRCUIT BREAKER | |
| 4 | CLF72 (BN) | 22 | #N/A | |
| 5 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
| 6 | CLF75 (VT-BN) | 22 | #N/A |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1032 |
Service Part Number: 9U2Z-14S411-XA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Module - Climate Control Seat Module - Heated Seat |
