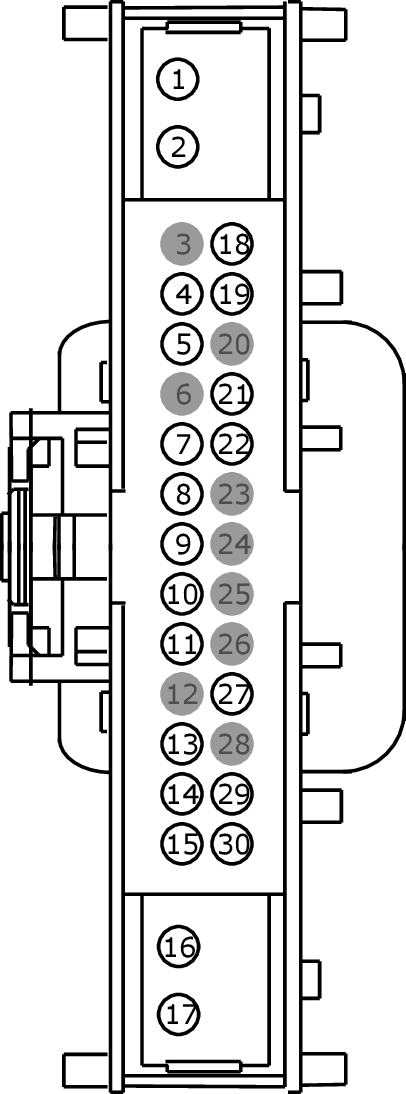

Connector End View (C2402B) - FRONT CONTROLS INTERFACE MODULE (FCIM)

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB55 (WH-RD)	18	FUSE - 55 OR CIRCUIT BREAKER
2	SBB55 (WH-RD)	18	FUSE - 55 OR CIRCUIT BREAKER
3	*	*	Not Used
4	VH409 (WH)	22	SENSOR - DISCHARGE TEMP. # LEFT
5	VH410 (GY)	26	SENSOR - DISCHARGE TEMP. # LEFT 2ND
6	*	*	Not Used
7	CH310 (GN)	26	CTRL MOD. - RELAY PTC BANK 1
8	CH311 (VT)	26	CTRL MOD. - RELAY PTC BANK 2
9	CH312 (YE)	26	CTRL MOD. - RELAY PTC BANK 3
10	VH411 (VT-GN)	22	SENSOR - DISCHARGE TEMP. # RIGHT
11	VH412 (YE-GY)	22	SENSOR - DISCHARGE TEMP. # RIGHT 2ND
12	*	*	Not Used
13	CH212 (BU-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE (IF PLUS)
14	CH213 (BN-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS)
15	RHS10 (BU-OG)	22	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.
16	CHS02 (YE-BU)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +
17	CHS07 (GY-BU)	16	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +
18	VH441 (WH-BN)	22	SENSOR - DOOR POSITION TEMP. RIGHT
19	VH413 (WH-BU)	22	SENSOR - HUMIDITY
20	*	*	Not Used
21	VH416 (VT)	26	SENSOR - SUN LOAD # LEFT
22	VH417 (YE-OG)	22	SENSOR - SUN LOAD # RIGHT
23	*	*	Not Used
24	*	*	Not Used
25	*	*	Not Used
26	*	*	Not Used
27	VHA31 (GN-BN)	22	SENSOR - REAR TEMP
28	*	*	Not Used
29	VH414 (GN)	26	SENSOR - INCAR TEMP.
30	RHS05 (YE-VT)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.
