Connector End View (C2398) - GLOBAL POSITIONING SYSTEM MODULE (GPSM)
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP32 (VT-RD) | 22 | FUSE - 32 OR CIRCUIT BREAKER | |
| 2 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 3 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | GD215 (BK-GY) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |

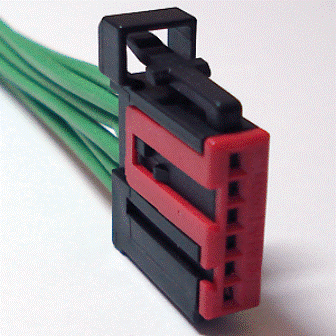

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-958 |
Service Part Number: 6U2Z-14S411-LB Gauge: 18 20 Pin material: Tin & Silver Cavities: 6 Vehicle Uses Antenna - GPS Module - Global Positioning |
