Connector End View (C2391A) - STEERING EFFORT CONTROL MODULE (SECM)
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
LT GY
Harness
PIA
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (*) | * | FUSE - F45 (B+) | |
| 2 | * (*) | * | GROUND - INSTRUMENT PANEL STRUCTURE |
| Available Pigtail Kits | |

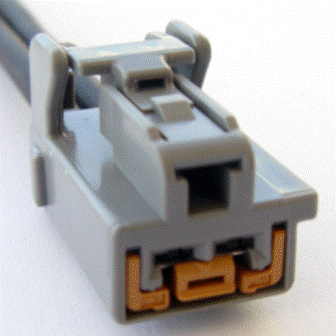

| Pigtail Kit Part Number WPT-404 |
Service Part Number: 3U2Z-14S411-CAA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear Switch - Brake Pedal Position Switch - Stop Lamp |
