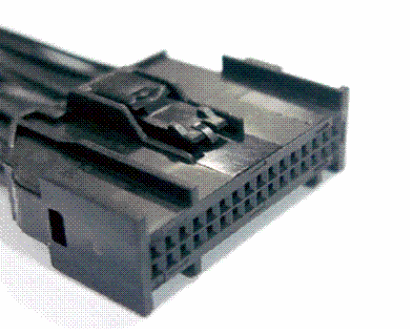

Connector End View (C2280D) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers

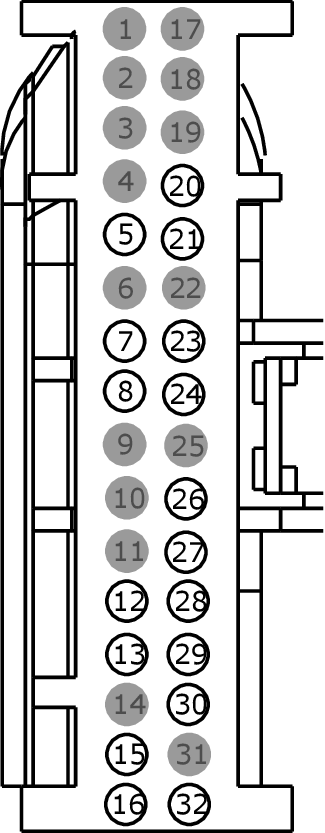

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | VPK40 (WH) | 26 | SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA | |
| 6 | * | * | Not Used | |
| 7 | VMP17 (YE-OG) | 22 | SENSOR - PARKING AID # REAR # (RIGHT OUTER) | |
| 8 | VMP16 (YE-GY) | 20 | SENSOR - PARKING AID # REAR # (RIGHT INNER) | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | VPK02 (VT) | 26 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER + | |
| 13 | VPK01 (BN) | 26 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER + | |
| 14 | * | * | Not Used | |
| 15 | RPK06 (BU-WH) | 18 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) - | |
| 16 | VPK06 (GY-VT) | 18 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) + | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | RPK39 (VT-OG) | 22 | SENSOR - KEYLESS VEHICLE HANDLE | |
| 21 | VPK39 (GN) | 26 | SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA | |
| 22 | * | * | Not Used | |
| 23 | VMP15 (YE-GN) | 22 | SENSOR - PARKING AID # REAR # (LEFT OUTER) | |
| 24 | VMP14 (WH-OG) | 22 | SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE) | |
| 25 | * | * | Not Used | |
| 26 | LMP07 (BU-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR + | |
| 27 | RMP07 (GN-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR - | |
| 28 | RPK01 (WH) | 26 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER - | |
| 29 | RPK02 (GY) | 26 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER - | |
| 30 | VPK06 (GY-VT) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) + | |
| 31 | * | * | Not Used | |
| 32 | RPK08 (BN-VT) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1512 |
Service Part Number: JU2Z-14S411-DA Gauge: 20 Pin material: Silver Cavities: 32 Vehicle Uses Module - Body Control |
