Connector End View (C2247) - IN-VEHICLE TEMPERATURE/HUMIDITY SENSOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers

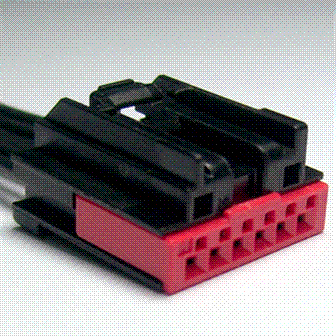

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VHA31 (GN-BN) | 22 | SENSOR - REAR TEMP | |
| 2 | VH414 (GN) | 26 | SENSOR - INCAR TEMP. | |
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF | |
| 4 | VH413 (WH-BU) | 22 | SENSOR - HUMIDITY | |
| 4 | VH413 (WH) | 26 | SENSOR - HUMIDITY | without multifunction display |
| 5 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # GENERIC VREF RETURN | |
| 6 | CBP21 (BU-GY) | 22 | FUSE - 21 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1471 |
Service Part Number: GU2Z-14S411-PA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Sensor - EATC In Car Temperature Switch - Seat Lumbar Transceiver - Passive Anti-Theft (PATS) |
