Connector End View (C2195) - IGNITION SWITCH-PUSH BUTTON START
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14C210
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CDC35 (BU-WH) | 22 | SWITCH - IGNITION # START | |
| 2 | CPK36 (VT-BN) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED | |
| 3 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
| 4 | SBP18 (YE-RD) | 22 | FUSE - 18 OR CIRCUIT BREAKER | |
| 5 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 6 | CPK35 (YE-OG) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + |

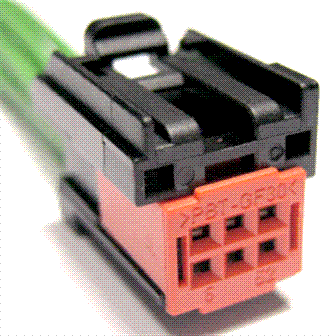

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1164 |
Service Part Number: 8U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Deck Lid / Hatch Release Switch - Deck Lid / Lift Gate Ajar Switch - Hazard Warning Switch - Heated Back Light (Rear Defrost) Switch - Power Liftgate Switch - Reverse Park Aid Switch - Start/Stop Switch - Sunshade Switch - Traction Control |
