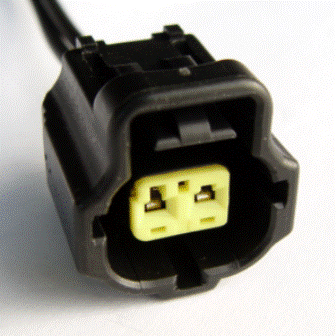

Connector End View (C1622) - EGR COOLER BYPASS VALVE SOLENOID
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
12B637
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | |
| 2 | VE917 (BN-YE) | 18 | VALVE - EXHAUST GAS RECIRCULATION COOLER BYPASS (EGRCBV) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-357 |
Service Part Number: 3U2Z-14S411-HVA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Fuel Pump/Sending Unit Motor - Idle Air Control Motor - Rear Window Washer Fluid Pump Motor - Windshield Washer Fluid Pump Sensor - Coolant Temperature Sensor - Washer Fluid level |
