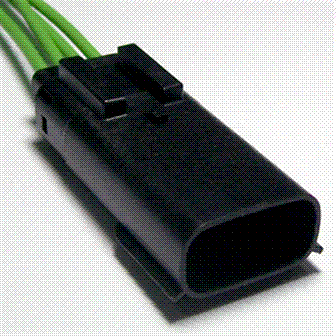

Connector End View (C1581) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Base Part #
Service Pigtail
See Below
MALE
Harness 2B572
FEMALE
Harness 14405
| Pin | Circuit | Gauge | Qualifier |
| 1 | VE823 (BU-BN) | 20 | |
| 2 | RE407 (YE-VT) | 20 | |
| 3 | GD476 (BK-WH) | 20 | |
| 4 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1432 |
Service Part Number: FU2Z-14S411-ABA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses: Lamp - Flashing LED Lamp - Park/Turn/Stop Speaker - Front |
| Pigtail Kit Part Number WPT-925 |
Service Part Number: 8U2Z-14S411-TA Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses: A/C Compressor Clutch Lamp - Headlamp - High/Low Beam |
