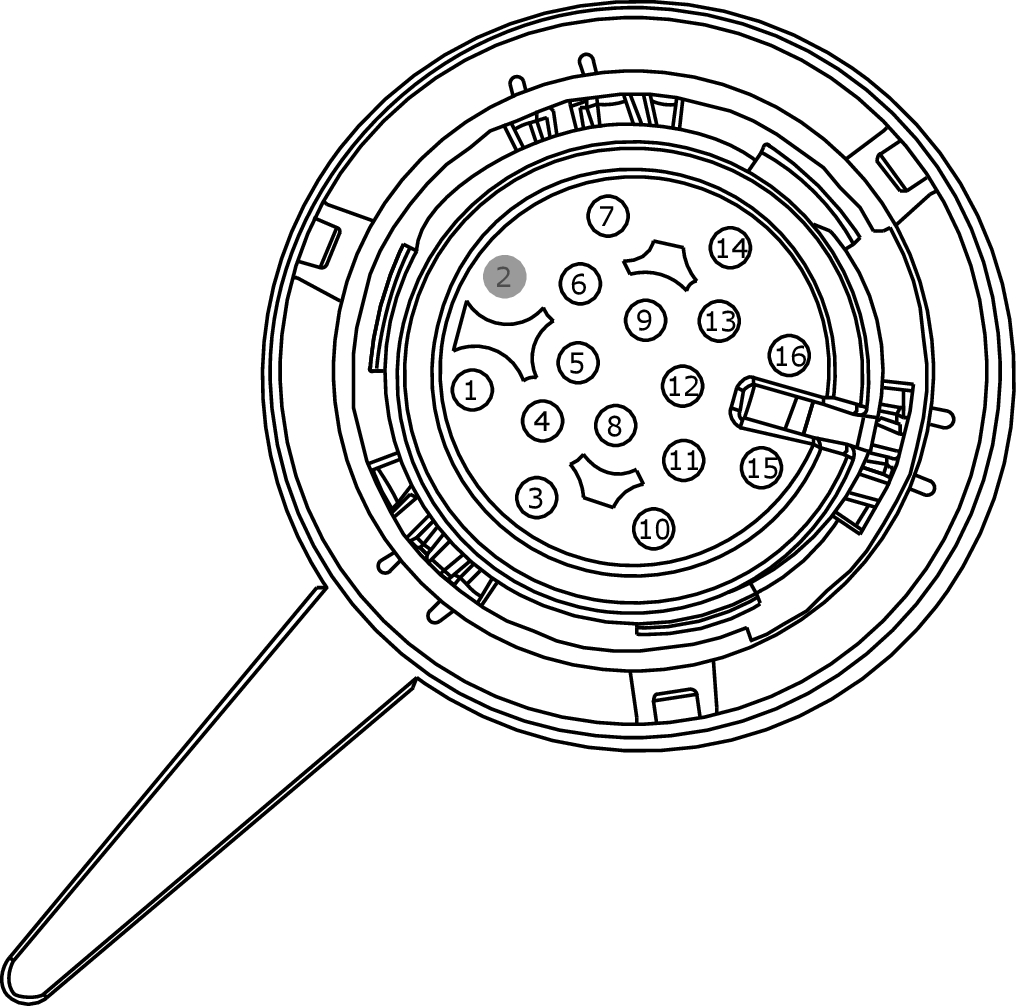

Connector End View (C1575) - TRANSMISSION, 6R100

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RET33 (WH-VT)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) -
2	*	*	Not Used
3	CET10 (BU-GY)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS]
4	VET32 (VT)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P)
5	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2
6	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)
7	CET25 (BU-GN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)
8	CET16 (WH-BU)	18	CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL HIGH-SIDE 1 (SS-H1) [HMSS]
9	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS]
10	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS]
11	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)
12	LE111 (VT-GN)	18	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)
13	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS]
14	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS]
15	RET04 (YE-OG)	20	CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS)
16	CET09 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS]

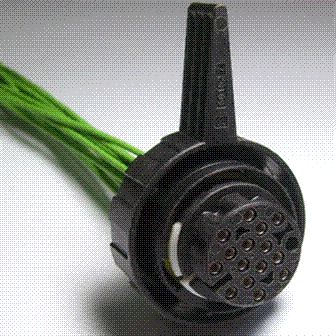

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1390

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-HA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Transmission - Bulkhead
