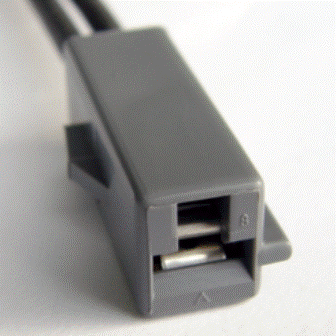

Connector End View (C1545) - IGNITION TRANSFORMER CAPACITOR 2
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GY
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK04 (VT) | 16 | FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-352 |
Service Part Number: 3U2Z-14S411-HNA Gauge: 12 Pin material: Tin Cavities: 1 Vehicle Uses Capacitor - Ignition/Radio |
