Connector End View (C1454) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) | |
| 2 | VE740 (VT-GY) | 20 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | manual |
| 2 | VE740 (VT-GY) | 18 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | autmatic |
| 3 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | |
| 4 | VE803 (BU-GN) | 20 | SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + |

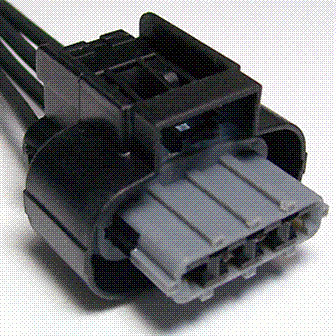

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1232 |
Service Part Number: BU2Z-14S411-ATA Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Sensor - Manifold Pressure/Intake Temperature |
