Connector End View (C1392) - FUEL LEVEL SENSOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14405
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RMC33 (WH-VT) | 18 | CTRL MOD. - SENSOR FUEL LEVEL 2 | |
| 2 | VMC23 (GN-OG) | 18 | SENSOR - FUEL LEVEL 2 (FLI) | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used |

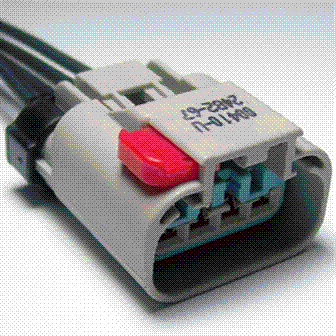

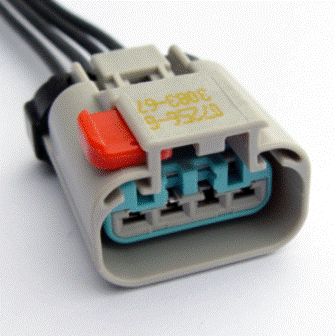

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1373 |
Service Part Number: 3U2Z-14S411-DGAB Gauge: 16 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Fuel Pump/Sending Unit Module - Fuel Pump Driver Sensor - Fuel Level |
| Pigtail Kit Part Number WPT-709 |
Service Part Number: 3U2Z-14S411-DGAA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses Control - Engine Air Shutoff Fuel Pump/Sending Unit |
