Connector End View (C1291) - CONSTANT VACUUM HUBLOCK (CVH) SOLENOID
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBB81 (RD) | 12 | FUSE - 81 OR CIRCUIT BREAKER | |
| 2 | CCF05 (BN-BU) | 12 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTEGRATED WHEEL ENDS (4WDIWE) |
| Available Pigtail Kits | |

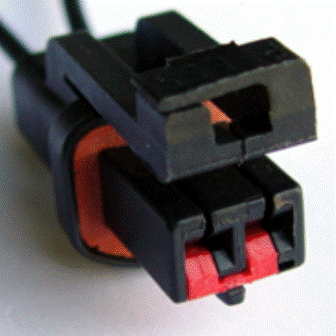

| Pigtail Kit Part Number WPT-441 |
Service Part Number: 3U2Z-14S411-MNA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Solenoid - Canister Vent Solenoid - Electronic Automatic Temperature Control (EATC) Solenoid - Pulse Vacuum Switch - Courtesy Lamp Switch - Deck Lid / Lift Gate Ajar Switch - Door Ajar / Interior Lamp Switch - Windshield Wiper / Washer |
