Connector End View (C1271) - EXHAUST PRESSURE (EP) SENSOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
12B637
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) | |
| 2 | LE458 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) | |
| 3 | VE921 (GY-BU) | 20 | TRANSDUCER - EXHAUST GAS RECIRCULATION PRESSURE |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1376 |

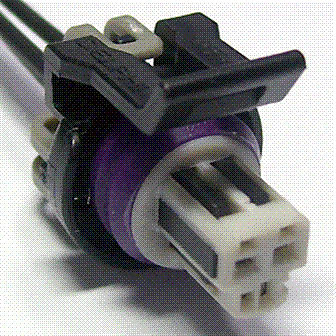

Service Part Number: AU2Z-14S411-LB Gauge: 18 Pin material: Tin & Tin (greased) Cavities: 3 Vehicle Uses Sensor - Exhaust Gas Pressure Sensor - Oil Pressure Switch - A/C Compressor Clutch Cycling |
| Pigtail Kit Part Number WPT-1058 |

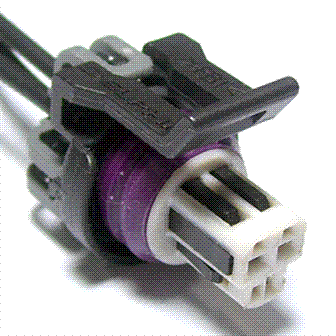

Service Part Number: AU2Z-14S411-LA Gauge: 18 Pin material: Tin Cavities: 3 Vehicle Uses Sensor - Exhaust Gas Pressure Switch - A/C Compressor Clutch Cycling |
