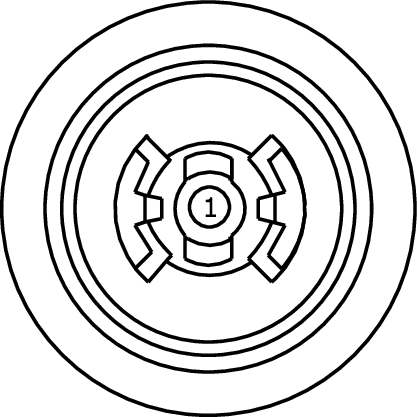

Connector End View (C1263) - GLOW PLUG 1
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
12B637
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE243 (GY-VT) | 12 | CTRL MOD. - GLOW PLUG 1 OR ELECTRONIC COLD START |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1059 |
Service Part Number: AU2Z-14S411-XA Gauge: 12 Pin material: Silver Cavities: 1 Vehicle Uses Glow Plug |
