Connector End View (1583) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Base Part #
part# N/A
Service Pigtail
See Below

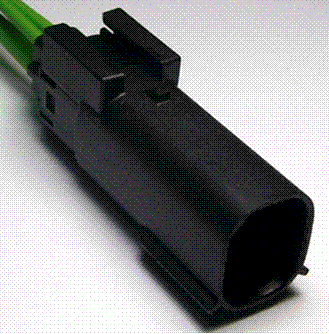

MALE
Harness 14405

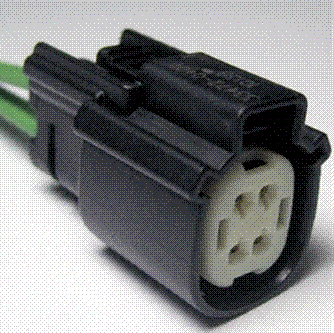

FEMALE
Harness 2B572
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | VE823 (BU-BN) | 20 | |
| 2 | RE407 (YE-VT) | 20 | |
| 3 | GD406 (BK-YE) | 20 | |
| 4 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1288 |
Service Part Number: CU2Z-14S411-ZA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses: Sensor - Catalyst Monitor Sensor - O2 (HEGO/EGO) |
| WPT-1498 | Service Part Number: BU2Z-14S411-TB Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses: Connector - Inline Lamp - Headlamp - High/Low Beam Lamp - Park/Turn/Stop Lamp - Reverse Sensor - Catalyst Monitor Sensor - O2 (HEGO/EGO) Speaker - Siren Speaker - Subwoofer Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Rear Valve - Active Exhaust Solenoid |
