Connector End View (C980) - POWER SLIDING WINDOW SWITCH, REAR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GY
Harness
15A404
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP23 (BN-YE) | 22 | FUSE - 23 OR CIRCUIT BREAKER | |
| 2 | CPW59 (VT) | 26 | SWITCH - POWER WINDOW REAR (BACKLIGHT) # UP OR RIGHT | |
| 3 | CPW58 (YE) | 26 | SWITCH - POWER WINDOW REAR (BACKLIGHT) # DOWN OR LEFT | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | GD348 (BK-YE) | 22 | GROUND - PILLAR C OR QUARTER PANEL RIGHT |

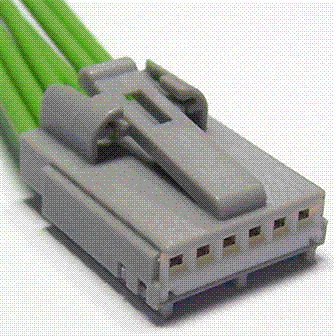

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1028 |
Service Part Number: 9U2Z-14S411-APA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear |
