Connector End View (C922) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GY
Base Part #
Service Pigtail
See Below
MALE
Harness 14334
FEMALE
Harness 15A404
| Pin | Circuit | Gauge | Qualifier |
| 1 | SBP11 (BU-RD) | 22 | |
| 2 | CBP23 (BN-YE) | 22 | |
| 3 | CPW59 (VT) | 26 | |
| 4 | CPW58 (YE) | 26 | |
| 5 | * | * | |
| 6 | GD348 (BK-YE) | 22 | |
| 7 | VLN04 (VT) | 18 | 14334 |
| 7 | VLN04 (VT-GY) | 18 | 15A404 |
| 8 | VDN03 (GY-VT) | 22 | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * | |
| 12 | GD348 (BK-YE) | 22 |

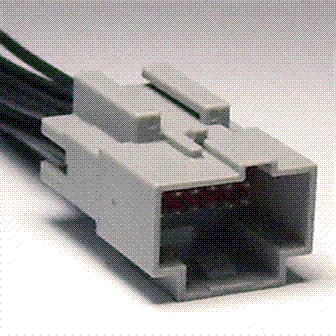

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1185 |
Service Part Number: BU2Z-14S411-AJA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses: Camera - Reverse Park Aid Switch - Gear Shift Select/Neutral Safety |
| Pigtail Kit Part Number WPT-949 |
Service Part Number: 3U2Z-14S411-BMAB Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses: Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety |
