Connector End View (C921) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
#N/A
Base Part #
Service Pigtail

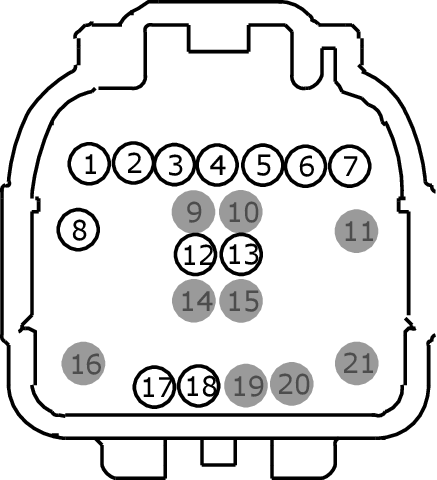

See Below
MALE
Harness 14A005

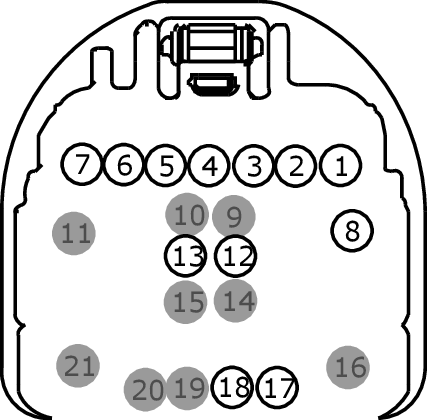

FEMALE
Harness 14334
| Pin | Circuit | Gauge | Qualifier |
| 1 | CLS10 (GN-BN) | 22 | |
| 2 | VLN33 (GY-VT) | 22 | |
| 3 | CPW58 (YE) | 26 | 14334 |
| 3 | CPW58 (YE-OG) | 22 | 14A005 |
| 4 | CPW59 (VT) | 26 | 14334 |
| 4 | CPW59 (VT-BN) | 22 | 14A005 |
| 5 | VDN05 (GY) | 26 | 14334 |
| 5 | VDN05 (YE-GY) | 22 | 14A005 |
| 6 | CBP23 (BN-YE) | 22 | |
| 7 | CBB96 (BU-GN) | 22 | |
| 8 | CLN09 (YE-GN) | 18 | 14334 |
| 8 | CLN09 (YE-GN) | 20 | 14A005 |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * | |
| 12 | GD348 (BK-YE) | 22 | |
| 13 | GD348 (BK-YE) | 22 | |
| 14 | * | * | |
| 15 | * | * | |
| 16 | * | * | |
| 17 | SBP11 (BU-RD) | 22 | |
| 18 | VDN03 (GY-VT) | 22 | |
| 19 | * | * | |
| 20 | * | * | |
| 21 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number: WPT-1561 |
Service Part Number: JU2Z-14S411-ARA Gauge: 14 16 20 Pin material: Tin Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1425 |
Service Part Number: FU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number: WPT-1559 |
Service Part Number: FU2Z-14S411-RB Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
