Connector End View (C914) - RAIN SENSOR MODULE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
18D695
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBB96 (BU-GN) | 20 | FUSE - 96 OR CIRCUIT BREAKER | |
| 2 | VDN05 (GY) | 20 | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE | |
| 3 | GD348 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT |

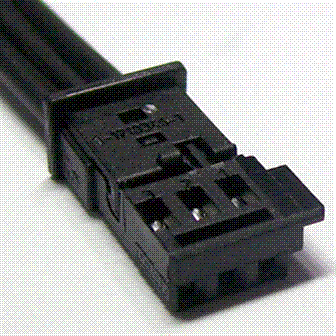

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1096 |
Service Part Number: AU2Z-14S411-ZA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Rain |
