Connector End View (C710) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
NA
Base Part #
Service Pigtail
Not Available

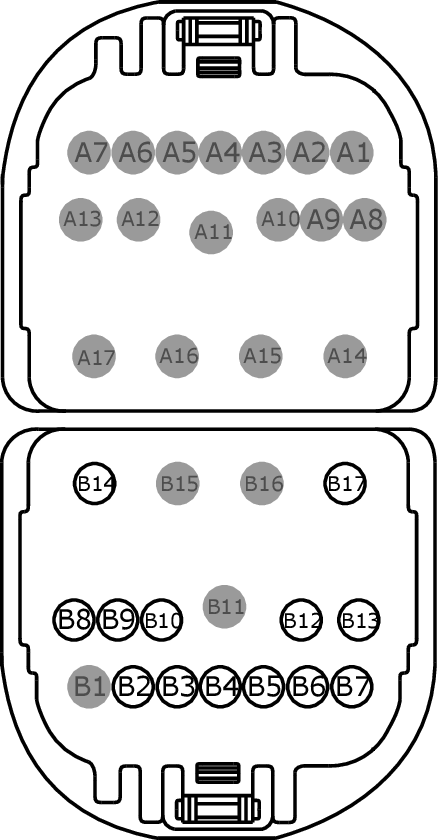

MALE
Harness 14633

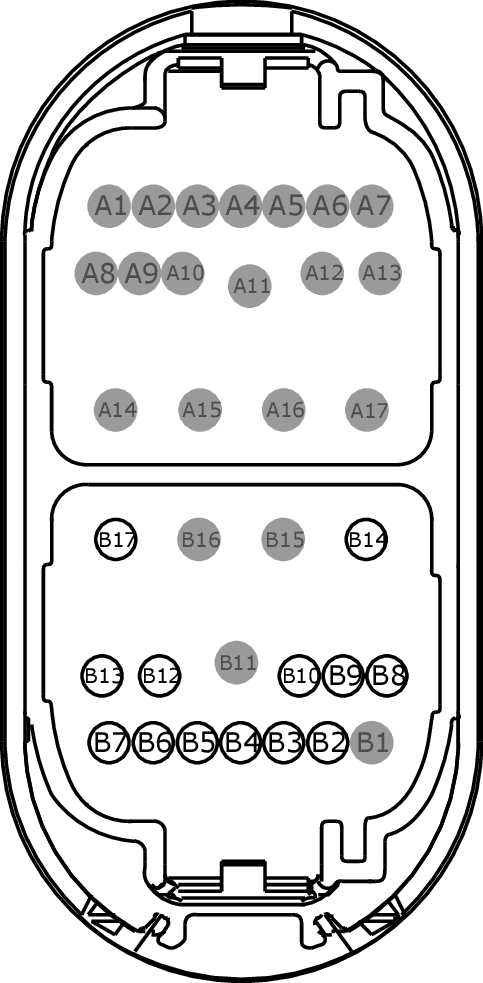

FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| A1 | * | * | |
| A2 | * | * | |
| A3 | * | * | |
| A4 | * | * | |
| A5 | * | * | |
| A6 | * | * | |
| A7 | * | * | |
| A8 | * | * | |
| A9 | * | * | |
| A10 | * | * | |
| A11 | * | * | |
| A12 | * | * | |
| A13 | * | * | |
| A14 | * | * | |
| A15 | * | * | |
| A16 | * | * | |
| A17 | * | * | |
| B1 | * | * | |
| B2 | CPW14 (VT-WH) | 22 | |
| B3 | CBX07 (GN-RD) | 22 | |
| B4 | CPW16 (BU) | 26 | 14A005 |
| B4 | CPW16 (BU-OG) | 22 | 14633 |
| B5 | CPW15 (YE) | 22 | 14633 |
| B5 | CPW15 (YE) | 26 | 14A005 |
| B6 | VME09 (WH-GN) | 18 | 14A005 - with Sony |
| B6 | VME09 (WH-GN) | 20 | |
| B7 | RME09 (BN-YE) | 18 | 14A005 - with Sony |
| B7 | RME09 (BN-YE) | 20 | |
| B8 | VDN13 (BN) | 22 | |
| B9 | CPL36 (GN) | 22 | 14633 |
| B9 | CPL36 (GN) | 26 | 14A005 |
| B10 | GD347 (BK-VT) | 22 | |
| B11 | * | * | |
| B12 | CPL13 (BN-GN) | 16 | |
| B13 | CPL11 (GY-BN) | 16 | 14A005 |
| B13 | CPL11 (GY-BN) | 16 | 14633 |
| B14 | CBP38 (GY-BU) | 14 | |
| B15 | * | * | |
| B16 | * | * | |
| B17 | GD347 (BK-GY) | 14 | 14A005 |
| B17 | GD347 (BK-VT) | 14 | 14633 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1519 |
Service Part Number: JU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 17 Vehicle Uses: Connector - Inline |
