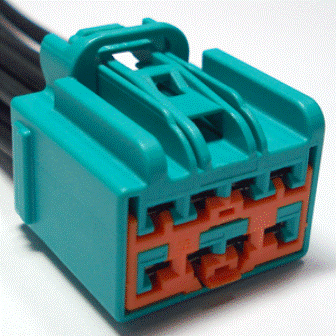

Connector End View (C701) - REAR DOOR WINDOW CONTROL SWITCH LH
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GN
Harness
14633
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP38 (GY-BU) | 14 | FUSE - 38 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD347 (BK-VT) | 14 | GROUND - PILLAR C OR QUARTER PANEL LEFT | |
| 4 | CPW22 (GN-VT) | 14 | SWITCH - POWER WINDOW REAR LEFT # UP | |
| 5 | CPW14 (VT-WH) | 22 | SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE) | |
| 6 | CPW16 (BU-OG) | 22 | SWITCH - POWER WINDOW DRIVER # REAR LEFT UP | |
| 7 | CPW15 (YE) | 22 | SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN | |
| 8 | CPW21 (BN) | 14 | SWITCH - POWER WINDOW REAR LEFT # DOWN |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1031 |
Service Part Number: 3U2Z-14S411-PPB Gauge: 10 12 Pin material: Tin & Silver Cavities: 8 Vehicle Uses Switch - Adjustable Pedal Switch - Convertable Top Switch - Door Lock (Cargo) Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Moon Roof/Sun Roof Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat Lumbar Switch - Third Row Power Folding Seat |
