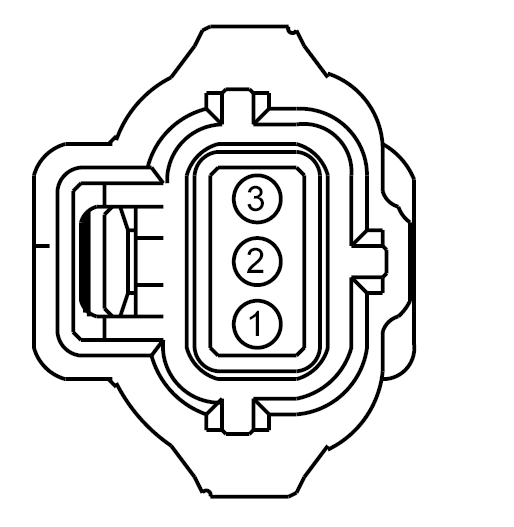

Connector End View (C1251A) - GENERATOR, SECONDARY
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14305
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CDC47 (WH) | 20 | GENERATOR (ALTERNATOR) # LOAD INPUT #2 (GENLI) | |
| 2 | CDC48 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # GENERATOR INDICATOR-LINE CONTROL #2 (ILC) | |
| 3 | SDC02 (RD) | 14 | BATTERY - # PLUS |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-118 |
Service Part Number: 1U2Z-14S411-TA Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses Alternator Sensor - Brake Fluid Level Sensor - Throttle Position |
