Connector End View (C1147) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
DK GY
Base Part #
Service Pigtail
See Below
MALE
Harness 12B637
FEMALE
Harness 12A581
| Pin | Circuit | Gauge | Qualifier |
| 1 | CE243 (GY-VT) | 12 | 12B637 |
| 1 | CE243 (GY-VT) | 4 | 12A581 |
| 2 | CE244 (BU-BN) | 12 | 12B637 |
| 2 | CE244 (BU-BN) | 4 | 12A581 |
| 3 | CE245 (VT-WH) | 12 | 12B637 |
| 3 | CE245 (VT-WH) | 4 | 12A581 |
| 4 | CE246 (YE-BU) | 12 | 12B637 |
| 4 | CE246 (YE-BU) | 4 | 12A581 |
| 5 | CE247 (GN-WH) | 12 | 12B637 |
| 5 | CE247 (GN-WH) | 4 | 12A581 |
| 6 | CE248 (WH-BN) | 12 | 12B637 |
| 6 | CE248 (WH-BN) | 4 | 12A581 |
| 7 | CE251 (BN-GN) | 12 | 12B637 |
| 7 | CE251 (BN-GN) | 4 | 12A581 |
| 8 | CE252 (GY) | 12 | 12B637 |
| 8 | CE252 (GY) | 4 | 12A581 |
| Available Pigtail Kits | |

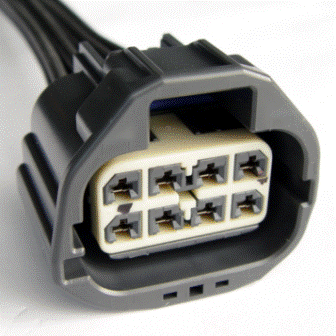

| Pigtail Kit Part Number WPT-1084 |
Service Part Number: AU2Z-14S411-AEA Gauge: 12 Pin material: Tin (greased) Cavities: 8 Vehicle Uses: Connector - Inline |

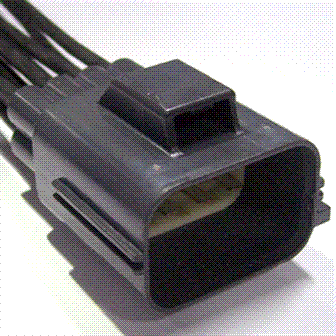

| Pigtail Kit Part Number WPT-521 |
Service Part Number: 3U2Z-14S411-TZA Gauge: 12 Pin material: Tin Cavities: 8 Vehicle Uses: Fuel Pump/Sending Unit Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear Relay - Fuel Pump |
