Connector End View (C1127) - SIDE LAMP, LEFT FRONT
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD129 (BK-YE) | 20 | GROUND - HEADLAMP PANEL/GOR LEFT | |
| 2 | CLS06 (GN-OG) | 20 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1217 |

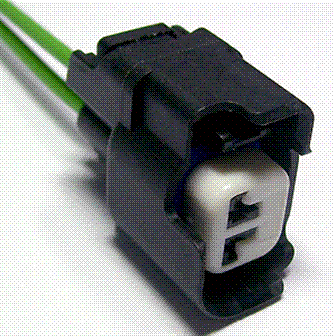

Service Part Number: AU2Z-14S411-AXA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Lamp - Rear Park Lamp - Reverse Lamp - Side Marker Sensor - Washer Fluid level Switch - Windshield Wiper / Washer |
