Connector End View (C1120) - CRANKSHAFT POSITION (CKP) SENSOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
12B637
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | |
| 2 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) | |
| 3 | VE711 (YE-VT) | 20 | SENSOR - CRANKSHAFT POSITION (CKPP) + |

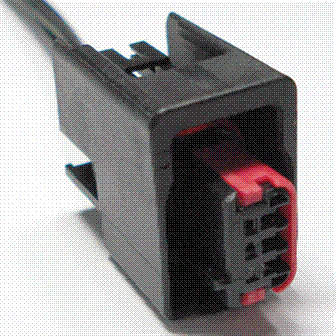

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1039 |
Service Part Number: 9U2Z-14S411-AGA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Adjustable Pedal Sensor - Cam Shaft Position Sensor - Crank Shaft Position |
