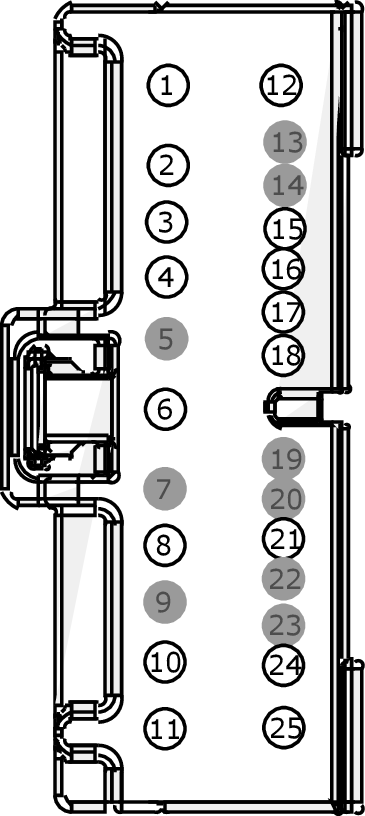

Connector End View (C1035A) - BATTERY JUNCTION BOX (BJB)

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

12A581

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW68 (VT-OG)	12	CTRL MOD. - WINDOW MOTOR REAR (BACKLIGHT) # DOWN
2	SBB98 (YE-RD)	16	FUSE - 98 OR CIRCUIT BREAKER
3	SBB95 (WH-RD)	20	FUSE - 95 OR CIRCUIT BREAKER
4	GD131 (BK-GY)	14	GROUND - HEADLAMP PANEL/GOR RIGHT
5	*	*	Not Used
6	CBB77 (WH)	12	FUSE - 77 OR CIRCUIT BREAKER
7	*	*	Not Used
8	SBB94 (BN-RD)	18	FUSE - 94 OR CIRCUIT BREAKER
9	*	*	Not Used
10	SBB90 (YE-RD)	16	FUSE - 90 OR CIRCUIT BREAKER
11	CPW67 (BN-VT)	12	CTRL MOD. - WINDOW MOTOR REAR (BACKLIGHT) # UP
12	CAT11 (BN)	10	CTRL MOD. - TRAILER TOW # PARK LAMPS
13	*	*	Not Used
14	*	*	Not Used
15	CPW59 (VT-BN)	22	SWITCH - POWER WINDOW REAR (BACKLIGHT) # UP OR RIGHT
16	CPW58 (YE-OG)	22	SWITCH - POWER WINDOW REAR (BACKLIGHT) # DOWN OR LEFT
17	CAT17 (BN)	22	RELAY - TRAILER TOW PARK LAMPS
18	CBB96 (BU-GN)	22	FUSE - 96 OR CIRCUIT BREAKER
19	*	*	Not Used
20	*	*	Not Used
21	CDC64 (WH-BU)	22	RELAY - RUN/ACCESSORY
22	*	*	Not Used
23	*	*	Not Used
24	CE226 (YE-VT)	22	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	Gas
24	CE226 (YE-VT)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	Diesel
25	CE608 (VT-GY)	10	RELAY - FUEL PUMP	Gas
25	CE608 (VT-GN)	10	RELAY - FUEL PUMP	Diesel

Available Pigtail Kits
Pigtail Kit Part Number WPT-1529	Service Part Number: JU2Z-14S411-VA Gauge: 12 16 18 20 Pin material: Tin & Silver Cavitites: 25 Vehicle Uses: Junction Box - Power Distribution
