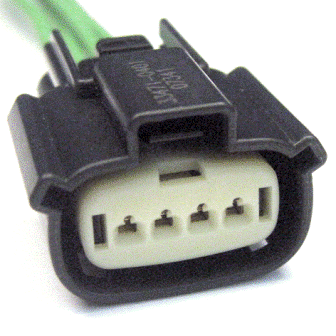

Connector End View (C1021) - HEADLAMP, LEFT

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

12A581

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLF04 (BN-BU)	20	CTRL MOD. - BEAM LOW LEFT
2	CLF02 (GY-BN)	18	CTRL MOD. - BEAM HIGH LEFT
3	GD129 (BK-VT)	18	GROUND - HEADLAMP PANEL/GOR LEFT
4	GD129 (BK-GN)	16	GROUND - HEADLAMP PANEL/GOR LEFT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-925

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-TA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

A/C Compressor Clutch

Lamp - Headlamp - High/Low Beam
