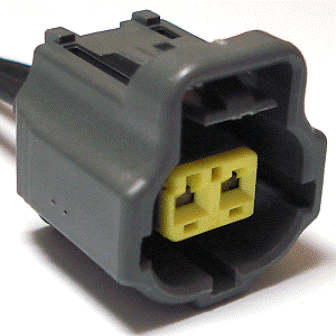

Connector End View (C1016) - SECONDARY COOLING SYSTEM ENGINE COOLANT TEMPERATURE 2 (ECT2) SENSOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GY
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) | |
| 2 | VE759 (GN-BN) | 20 | SENSOR - ENGINE COOLANT TEMPERATURE 2 (ECT2) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-989 |
Service Part Number: 3U2Z-14S411-HYB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Sensor - Coolant Temperature Sensor - Cylinder Head Temperature Sensor - Transmission Oil Temperature |
