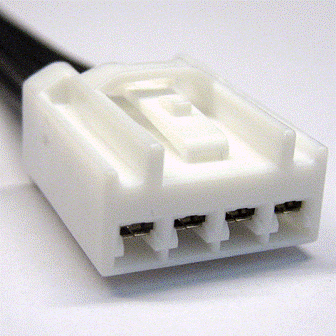

Connector End View (C628) - FRONT DOOR SPEAKER, RH
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
NA
Harness
14630
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME10 (WH-VT) | 20 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | RME10 (WH-OG) | 20 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-912 |
Service Part Number: 8U2Z-14S411-HA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety |
