Connector End View (C602) - FRONT DOOR AJAR SWITCH RH
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GY
Harness
14630
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL31 (WH) | 22 | SWITCH - LATCH PASSENGER # AJAR | |
| 2 | GD238 (BK-WH) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT |

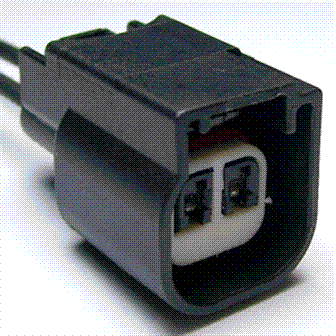

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1243 |
Service Part Number: 3U2Z-14S411-RPC Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Rear Handle - Decklid Lamp - Headlamp - High/Low Beam Lamp - Headlamp - Low Beam Lamp - License Lamp - Rear Turn Lamp - Side Marker Sensor - Knock Sensor - Seat Track Position Sensor - Throttle Position Sensor - Turbine Shaft Speed Sensor - Water in Fuel Switch - Deck Lid / Lift Gate Ajar Switch - Door Ajar / Interior Lamp Switch - Hood Ajar Switch - Lift Gate Glass Ajar Switch - Stop Lamp Valve - Vapor Management |
