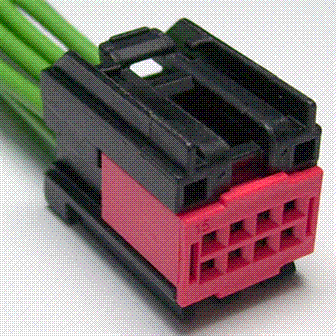

Connector End View (C577) - TELESCOPING EXTERIOR REAR VIEW MIRROR SWITCH
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14631
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RPW03 (BU-GN) | 22 | CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN | |
| 2 | CPL77 (BU-GY) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION | |
| 3 | CPM42 (YE-OG) | 22 | SWITCH - POWER MIRROR # LEFT (COMMON) MIRROR TELESCOPE OUT (IF PLUS) | |
| 4 | CBP23 (BN-YE) | 22 | FUSE - 23 OR CIRCUIT BREAKER | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | CPM41 (VT) | 22 | SWITCH - POWER MIRROR # LEFT (COMMON) MIRROR TELESCOPE IN (IF PLUS) | |
| 8 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-991 |
Service Part Number: 3U2Z-14S411-LCB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Switch - Ambient Lighting Dimmer Switch - Dimmer Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Message Center Switch - Power Window - Quarter Glass |
