Connector End View (C576) - EXTERIOR MIRROR BLIND SPOT (BLIS) / CROSS TRAFFIC ALERT (CTA) LED, LH

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

PIA

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	SENSOR - ALERT
2	* (*)	*	GROUND - COWL SIDE/PILLAR A LEFT

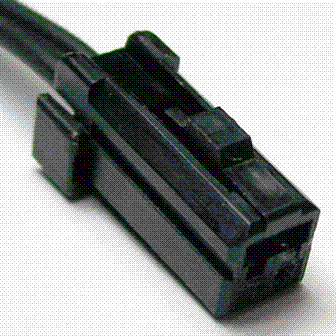

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1197

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-PFB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Mirror - Vanity

Sensor - Speed

Switch - Brake Deactivation

Switch - Brake Pedal Position

Switch - Brake Pressure

Switch - Park Brake

Switch - Speed Control

Switch - Speed Control Deactivation

Switch - Stop Lamp

Switch - Visor
