Connector End View (C567) - DRIVER DOOR SIDE IMPACT SENSOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14631
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VR236 (BU-OG) | 20 | SENSOR - SIDE IMPACT PRESSURE FRONT DRIVER SIDE | |
| 2 | RR174 (WH-OG) | 20 | CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT DRIVER SIDE - |
| Available Pigtail Kits | |

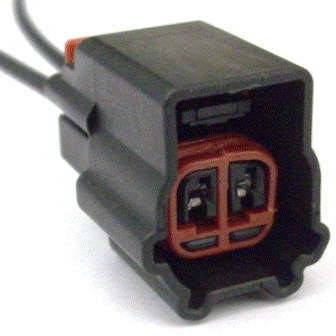

| Pigtail Kit Part Number WPT-948 |
Service Part Number: 3U2Z-14S411-EKB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Motor - Windshield Washer Fluid Pump Sensor - Side Impact |
| Pigtail Kit Part Number: WPT-1566 |
Service Part Number: 3U2Z-14S411-EKC Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Reverse Lamp - Running Board Motor - Electronic Throttle Control (ETC) Motor - Windshield Washer Fluid Pump Sensor - Brake Fluid Level Sensor - Side Impact Solenoid - Air Suspension Solenoid - Variable Oil Pump Control |
