Connector End View (C543) - EXTERIOR FRONT DOOR HANDLE LH

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Color

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK39 (GN-VT)	22	SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA
2	VPK01 (BN-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER +
3	RPK01 (WH-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER -
4	RPK39 (VT-BN)	22	SENSOR - KEYLESS VEHICLE HANDLE

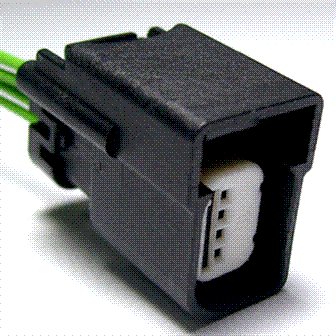

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1443

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ANA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Antenna - Keyless Entry

Lamp - Front Turn

Lamp - Side Marker (Rear Fender)

Switch - Keyless Door Handle
