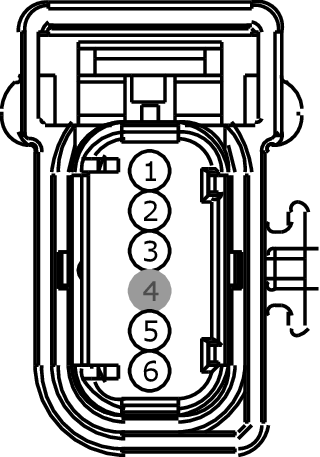

Connector End View (C500) - KEYLESS ENTRY KEYPAD
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14631
Base Part #
part# N/A

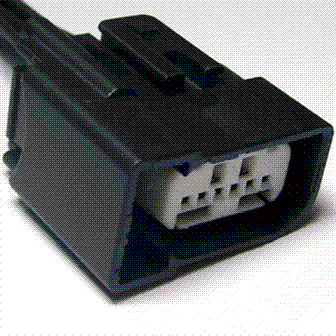

Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPK29 (GY-BU) | 22 | SWITCH - KEYLESS KEYPAD LINE A | |
| 2 | CPK28 (WH-GN) | 22 | CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION | |
| 3 | CPK30 (VT-GN) | 22 | SWITCH - KEYLESS KEYPAD LINE B | |
| 4 | * | * | Not Used | |
| 5 | CPK31 (YE-GN) | 22 | SWITCH - KEYLESS KEYPAD LINE C | |
| 6 | GD233 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1329 |
Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Antenna - Keyless Entry Handle - Decklid Switch - Keyless Entry Switch - Seatbelt |
