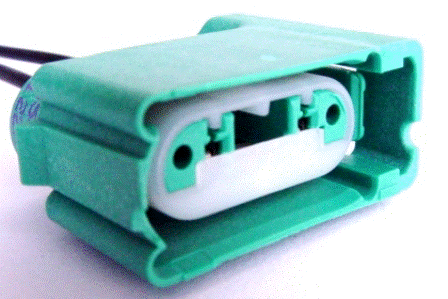

Connector End View (C488) - REVERSING LAMP, RIGHT
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GN
Harness
13A409
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD477 (BU-GY) | 20 | GROUND - FRAME REAR LEFT #2 | |
| 2 | * | * | Not Used | |
| 3 | CLS10 (GN-BN) | 18 | CTRL MOD. - REVERSE LEFT OR COMMON |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-868 |
Service Part Number: 6U2Z-14S411-CA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - Headlamp - Low Beam Lamp - Headlamp Switch |
