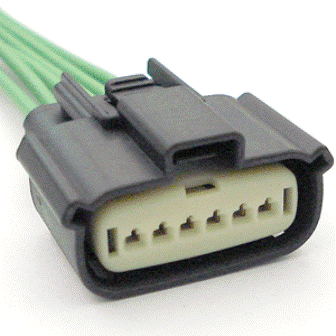

Connector End View (C465) - INLINE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Base Part #
Service Pigtail
See Below
MALE
Harness 13A409/14405
FEMALE
Harness 14B242
| Pin | Circuit | Gauge | Qualifier |
| 1 | CBB34 (VT-BN) | 20 | |
| 2 | VMP43 (GN-BU) | 20 | |
| 3 | VMP44 (VT-GY) | 20 | |
| 4 | DMP43 (BK) | 20 | |
| 5 | * | * | |
| 6 | VMP24 (WH) | 20 | 14B242 |
| 6 | VMP24 (WH) | 22 | 13A409/14405 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-944 |
Service Part Number: 9U2Z-14S411-NA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses: Connector - Inline |
