Connector End View (C452) - LICENSE PLATE LAMP, LEFT
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
LT GY
Harness
15K868
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD477 (BU-GY) | 20 | GROUND - FRAME REAR LEFT #2 | |
| 2 | CLS05 (BU-OG) | 20 | CTRL MOD. - PARK |
| Available Pigtail Kits | |

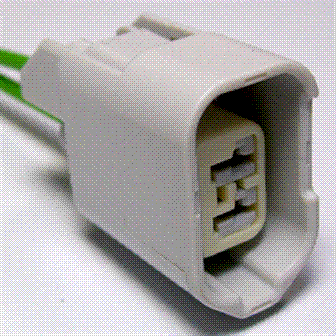

| Pigtail Kit Part Number WPT-1460 |
Service Part Number: 1U2Z-14S411-BEC Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Lamp - Fog/Driving Lamp - Front Cornering/Turn Lamp - Front Park Lamp - Front Turn Lamp - Front Turn/ Marker Lamp - Headlamp - High/Low Beam Lamp - License Lamp - Reverse Lamp - Running Board Lamp - Side Marker Lamp - Stop/Park Lamp - Under Hood |

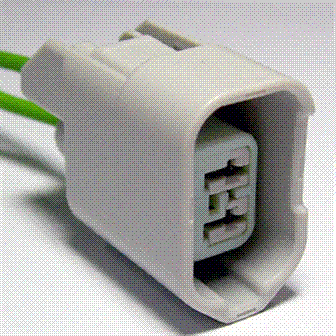

| Pigtail Kit Part Number WPT-1204 |
Service Part Number: 1U2Z-14S411-BEB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Lamp - Fog/Driving Lamp - Front Park Lamp - Front Turn Lamp - Front Turn/ Marker Lamp - License Lamp - Reverse Lamp - Running Board Lamp - Side Marker Lamp - Stop/Park Lamp - Under Hood |
