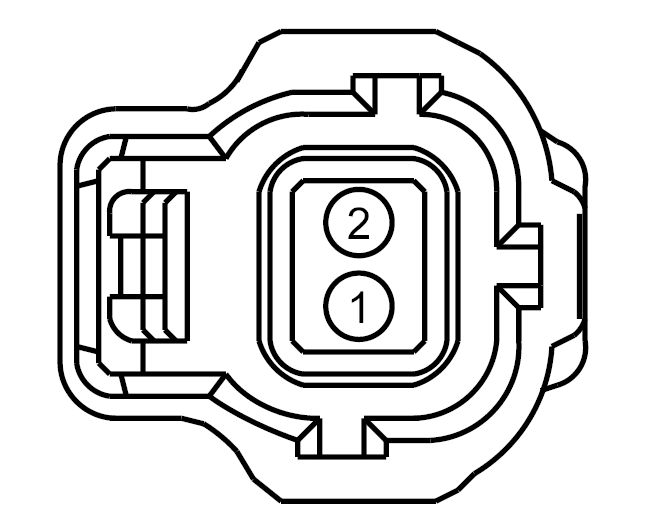

Connector End View (C450) - EVAPORATIVE EMISSION (EVAP) CANISTER VENT VALVE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14405
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK02 (GN) | 14 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | |
| 2 | CE114 (GN-BU) | 14 | CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) |
| Available Pigtail Kits | |

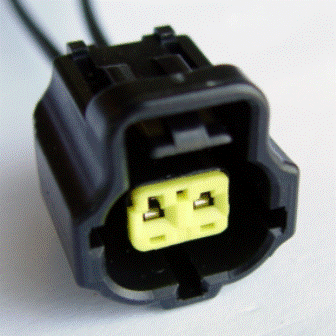

| Pigtail Kit Part Number WPT-322 |
Service Part Number: 3U2Z-14S411-JZA Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Resistor - Daytime Running Lamp (DRL) Sensor - Air Charge Temperature Sensor - Brake Pressure Solenoid - Canister Vent Switch - Brake Pressure |
