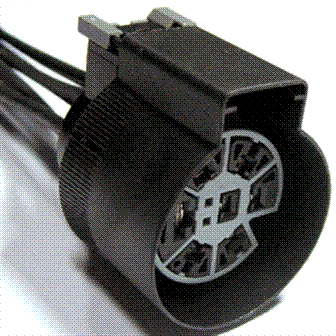

Connector End View (C439) - TRAILER TOW CONNECTOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
13A576
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CAT06 (YE) | 12 | CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT | |
| 2 | RAT08 (WH) | 10 | CTRL MOD. - TRAILER TOW # RETURN | |
| 3 | CAT19 (BU) | 12 | CTRL MOD. - TRAILER TOW # BRAKES | |
| 4 | CAT09 (GN) | 12 | CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT | |
| 5 | CAT14 (OG) | 12 | RELAY - TRAILER TOW BATTERY CHARGING | |
| 6 | CAT11 (BN) | 12 | CTRL MOD. - TRAILER TOW # PARK LAMPS | |
| 7 | CAT03 (GY-BN) | 16 | CTRL MOD. - TRAILER TOW # BACKUP LAMPS |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-975 |
Service Part Number: 3U2Z-14S411-JXB Gauge: 10 12 Pin material: Tin Cavities: 7 Vehicle Uses Trailer Tow - Vehicle Side |
