Connector End View (C435) - FUEL TANK PRESSURE (FTP) SENSOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14405
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE922 (VT-GN) | 20 | TRANSDUCER - FUEL TANK PRESSURE (FTPT) | |
| 2 | RE230 (WH-VT) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER | |
| 3 | LE230 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) |
| Available Pigtail Kits | |

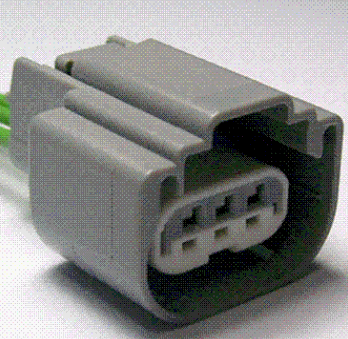

| Pigtail Kit Part Number WPT-1337 |
Service Part Number: 9U2Z-14S411-AB Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Brake Booster Travel Sensor - Brake Pressure Sensor - Brake Vacuum Sensor - Manifold Absolute Pressure (MAP) Sensor - Occupant Classification |

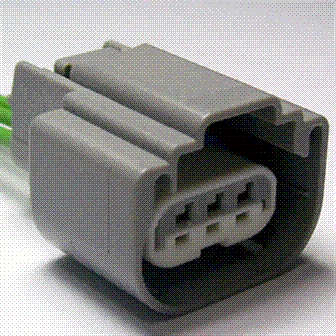

| Pigtail Kit Part Number WPT-1500 |
Service Part Number: 9U2Z-14S411-AC Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Lamp - Headlamp - High/Low Beam Sensor - Brake Booster Travel Sensor - Brake Pressure Sensor - Brake Vacuum Sensor - Delta Pressure Feedback EGR Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Occupant Classification |
